RadEye™ G Series

Continuously monitor your radiation exposure in any nuclear or radiological emergency. The Thermo Scientific™ RadEye™ G Series of personal radiation detectors provide first responders with quick, reliable gamma and dose rate measurements. These light-weight, handheld Geiger counters detect and measure very low gamma energies; even the smallest change in radiation rates are displayed immediately, while coincidentally occurring fluctuations are suppressed. For hazmat teams investigating potentially explosive atmospheres, intrinsically safe RadEye G models meet the latest ATEX standards

Dose rate range: G (G-10): 50μR/h to 10R/h (5μSv/h to 100mSv/h)
Dose rate range: GF (GF-10): 0.5mR/h – 300R/h (5μSv/h – 3Sv/h)
Energy range: G/ GF – 45 keV – 3MeV
Energy range: G-10/GF-10 – 50keV – 3MeV
Gamma sensitivity: G (G-10) – 17cps per mR/h (1.7 cps per μSv/h)
Gamma sensitivity: GF (GF-10) – 1.3cps per mR/h (0.13 cps per μSv/h)

RadEye™ NL Personal Highly Sensitive Neutron Radiation Detectors

Neutrons are used for material characterization in geological and geochemical sciences, material sciences and medical research. Personnel who work with neutron radiation need special instrumentation to monitor their radiation exposure and provide rapid warning of neutron radiation fields. The Thermo Scientific™ Radeye™ NL Personal Highly Sensitive Neutron Radiation Detectors complement passive and active neutron dosimeters and can be easily used by anyone working with industrial neutron sources, staff and inspectors of nuclear facilities, first responders and law enforcement officers.

The RadEye NL Personal Highly Sensitive Neutron Radiation Detector closes a gap in the classical product spectrum of the radiation measurement technology. While traditional Rem-Counters are usually heavy and bulky, the RadEye NL detector is compact and lightweight. Users (e.g. service staff) who travel on commercial aircraft can use the RadEye NL as it has a He-3 counting tube with a filling pressure of 2.5 bar.

The RadEye NL detector can be worn at the body in an optional holster using the users body as moderator. An optional moderator with handle is available for use outside the holster for search and find applications. A dose rate calibration factor can be entered for use in know neutron radation fields in reference to a calibrated neutron dose rate meter such as a remball.

High Sensitivity for Neutron Radiation

Rapid warning of neutron radiation fields.
Applicable as an Area Monitor.
Exceeds the neutron response requirements of ISO 22188.
Ideal complement to passive and active neutron dosimeters.
160g Lightweight with Low Power Technology

Always ready for use — can be worn and operated in its holster.
Hands-free operation with no restriction of personal mobility.
Rapid scanning of changing field intensities.
Detection of neutron shielding deficiencies and source presence.
Ideal complement to Rem-Counters.
No Spill-over from Gamma Radiation up to 10 mSv/h (1 R/h)

Ideal for verification of neutron fields when dealing with unknown radiation sources.
No false “Neutron Alarm.”
Can be used in high gamma dose rate fields.

FHT 762 Wendi-2 Wide-Energy Neutron Detector

Thermo Scientific™ FHT 762 Wendi-2 Wide-Energy Neutron Detector features high sensitivity and an excellent energy and angular response provided by the WENDI-2 design originally developed at Los Alamos.

Fits to FHT 6020 area monitor and FH 40 G survey meter.

Combines excellent energy response in the “normal” energy range up to 15 MeV with a close match to H™(10) behavior up to 5 GeV.

• Thermal to 5 GeV energy range according to H™(10), ICRP 74
• High sensitivity due to large He-3 tube
• Excellent gamma rejection
• Design was originally developed at Los Alamos
• No significant spill-over needs to be considered for gamma dose rates up to 1 Sv/h

RadEye™ B20 and B20-ER Multi-Purpose Survey Meters

First responders need to quickly identify mixed radioactive surface contamination in facility and field environments. Thermo Scientific™ RadEye™ B20 and B20-ER Multi-Purpose Survey Meters are simple, robust, reliable contamination and dose rate measurement tools for characterizing alpha, beta, gamma and X-ray radiation. RadEye B20 and B20-ER Multi-Purpose handheld Geiger counters provide an on-site solution for homeland security personnel, fire brigades, emergency response personnel, agencies involved in decontamination and decommissioning projects and hospital and pharmaceutical industry employees.

RadEye B20 and B20-ER Multi-Purpose Survey Meters offer consistent, reliable results in any application requiring radiological surveys of flat surfaces. Model B20 is for normal measurements. Model B20-ER is for high-range measurements.

• Lightweight (300g), excellent grip with and without gloves.
• Rugged and compact design, thick rubber protective cover.
• Low cost of ownership with > 500 hour operation time with 2 AAA batteries – rechargeable NiMH-cells can be used.
• Menu-driven user interface results in low training cost and immediate familiarity.
• Huge internal data memory for both scaler results and continuous data recording.
• Bright backlit LCD display. Plain text messages and different languages can be selected.
• Easy adaptation to different tasks by supervisor configuration, calibration, selection of measuring units.
•  Versatile operation modes:

Scaler/Timer with preset count and preset time for sample measurements.
Continuous ratemeter mode for frisker operation.
Dose rate mode.

• Audible indication: single pulse or chirper mode proportional to count rate.
• Earphone output for operation in loud environment.
• IR PC Interface or Bluetooth™ as option.
• Advanced Windows™ software is available as option.

Measurement types: alpha, beta, gamma and X-Ray detection. Optional energy compensated
filters for accurate dose rate readings
Dose rate energy range B20: 0-200mrem/h (0-2mSv/h)
Dose rate energy range B20-ER: 0-10rem/h (0-100mSv/h)
Contamination energy range B20: 0-10kcps
Contamination energy range B20-ER: 0-500kcps

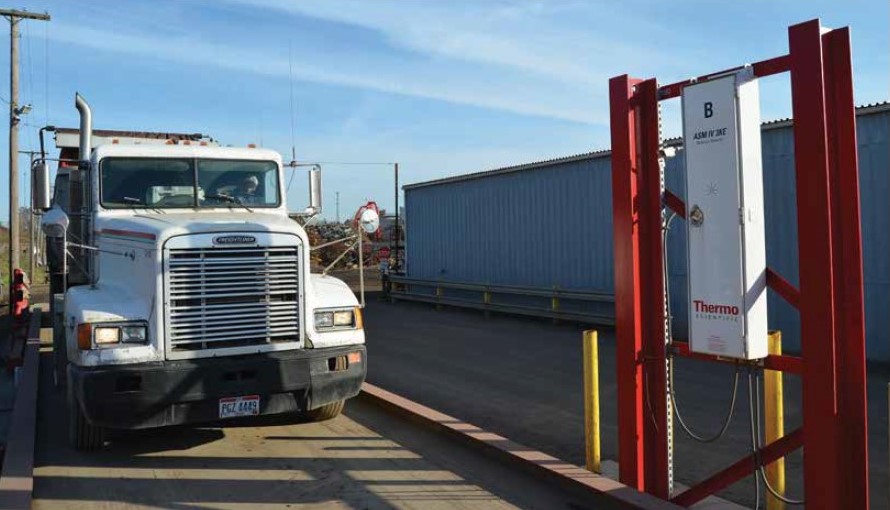

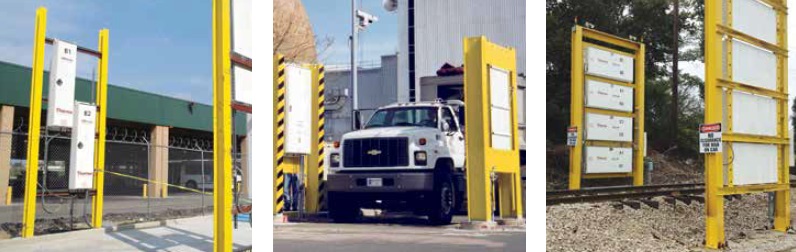

Automatic Scrap Monitor – ASM-IV

The Thermo Scientific™ ASM-IV automatic scrap monitoring system is a configurable platform to prevent radioactive materials from entering scrap metal and metal processing workflow resulting in expensive plant decontamination and shutdown. Offering unparalleled sensitivity and reliability, the ASM-IV system provides the perfect solution for portal monitoring applications that require the lowest possible alarm thresholds.

Radiation Detector Modules :

• White powder coated stainless steel housing with aluminum door avoids corrosion and allow for transmission of low energy Gamma radiation.
• Lockable three point latch door closure mechanism to provide security.
• 1584 cubic inch (26L) premium PVT scintillators and high gain PMT assemblies.
• Standard lead shielding and industrial anti-vibration shock mounts limit external interference.

System Control Unit :

• Large color touch screen display provides for clear operator communication while reducing desk clutter of keyboard and mouse.
• Ultra bright long life LEDs and push button membrane switches for clear status information and redundant acknowledgement to touch screen.
• USB and RJ45 Ethernet ports provided for easy connection of auxiallery devices and networking for remote monitoring.
• Four configurable input and four configurable output ports for communicating with external devices.
• All components solid-state including disc storage for high reliability.
• Linux operating system for high performance high reliability and longevity.
