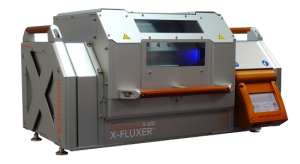

Katanax® X-600

X-600 Fluxer is the next generation in electric fusion, offering new enhanced features for unparalleled results. Our fluxers combine exceptional fusion accuracy with all the advantages of electric power combined with speed, simplicity and a robust design for the experienced or novice user.

  • Innovative heating elements
    • Impervious to flux and other chemical projections
    • Robust and non-brittle (instrument can be moved without element damage)
    • Cartridge type for easy replacement
    • Can be changed individually, without interruption
  • Advanced furnace
    • Dynamic Temperature Profile (DTP) to ensure uniform temperature (patent pending)
    • Individual element automatic power compensation (patent pending)
    • Fast heat-up (<15 minutes)
    • Strict use of ceramic eliminates metal contamination
  • Other
    • Industrial PLC interface (does not depend on Windows updates)
    • Requires no external supplies (no power supply box, no cooling fluids)
    • Single-phase power (no need for 3-phase)
    • Tiltable interface screen for various user heights
    • Ambient status light (red when processing, blue when completed)

Reliability

  • Built with the most demanding lab in mind
  • Heating elements impervious to flux and chemical projections
  • Robust, all-ceramic platinumware holders
  • Industrial-grade motors and electronics

High-throughput

  • Simultaneous processing of up to six (6) samples
  • Can prepare glass disks (beads) for XRF, or solutions for ICP, including preparations in peroxide or pyrosulfate
  • Throughput of up to 30 samples/hour
  • Fast initial heat-up time of under 15 minutes
  • Productivity is improved by a user-adjustable holding temperature. Therefore, the temperature between fusions can be maintained to minimize initial ramping time

Safety

  • No gases used, so no post-combustion toxic products released
  • Minimal heat dissipation; only a standard vent hood is required
  • Integrated, auto-locking protection shield with safety glass viewport

Accuracy

  • Extra-precise temperature control achieved by Dynamic Temperature Profiling (DTP) and automatic individual element power compensation (patents pending).
  • Entirely automated, cold-to-cold
  • Fully reproducible fusion methods
  • Outstanding reproducibility: all crucibles and molds are at the same temperature
  • Real-time temperature display
  • Optimum pouring conditions, since the molds are in the furnace with the crucibles

Versatility

  • Makes glass disks for XRF
  • Can also make solutions (including peroxide or pyrosulfate fusions without modification)
    • Optional variable-speed embedded solutions stirrer available
    • Prepares up to six (6) solutions for ICP or AA
    • Switching from disk to solution mode is quick and easy
  • Ready to fuse with built-in methods for oxides, minerals, metals, alloys, sulfides, fluorides and more
  • Can perform solid or liquid oxidations
  • Fully customizable fusion methods

Simplicity

  • A highly optimized, intelligent, advanced furnace
  • Easy installation
  • Intuitive graphical interface with multiple languages
  • Easy icon touch-screen navigation
  • Virtually maintenance-free; easy component access
Voltage: 195-250 VAC
(50-60 Hz)
Power (max): 4000 W
Temperature: 50-1200°C
Height: 56 cm [22″]
Width: 105 cm [41″]
Depth: 69 cm [27″]
Mass: 90 kg [198 lbs]
